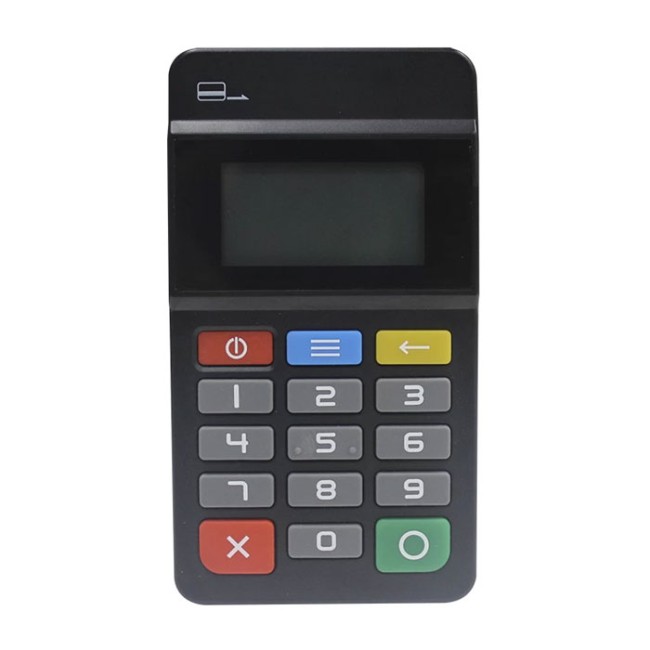

Mini Mobile Payment Terminal with EMV & PbOC & PCI certificates

Features & Advantages

Simple and Practical

Well-Designed, Large Button Design, Convenient Input.

Wireless Connection

Connects with mobile phone via Bluetooth®, get rid of cable constraints and enhance the payment experience

Comprehensive Adaption

Supports for Bluetooth® 3.0/4.0,Android, IOS;

Exceptional Functions

Supports for all types of payment including Magnetic Stripe Card, IC Card (Contact & Contact-less) and others.

Security Guarantees

Built-in high-grade security chip, dynamic state PSAM slot configuration to keep safe transaction.

Specifications

CPU：

32-bits high-performance security processor

Memory

8MB flash

Display

128*64 lattice LCD display.

Buttons

10 numerical buttons, 4 functional buttons, Power On/Off button;

Magnetic Card reader

Support for Track 2 & 3, Triple track (optional)

 IC Card reader

Support for ID-1 IC Card Reader, Capability of 1.8V/3V/5V Card

Contact-less Card Reader

 Supports for 13.56MHz contact-less IC Card, ISO14443 TYPE A/TYPE B Card, M1 card.

 Peripheral Ports

Micro-USB, IC Card Slot, Magnetic Stripe Card Slot, PSAM Slot (Optional)

Communication interface

 Communication: Bluetooth® 3.0/4.0, Sleep Mode, Low Power Mode;

Power & Battery

 Built-in Rechargeable lithium ion battery, Battery lasts for more than 500 transactions by Magnetic Stripe Card and IC Card

Indicator

1 LED status indicator

Buzzer

Built-in buzzer; Transaction Alert

Dimension

111mm*60mm*12mm；

Weight

68g
